- YONGU Split Extruded aluminum Enclosurse H04 52*38mm
Elecrical Enclosures
YONGU Split Extruded aluminum Enclosurse H04 52*38mm

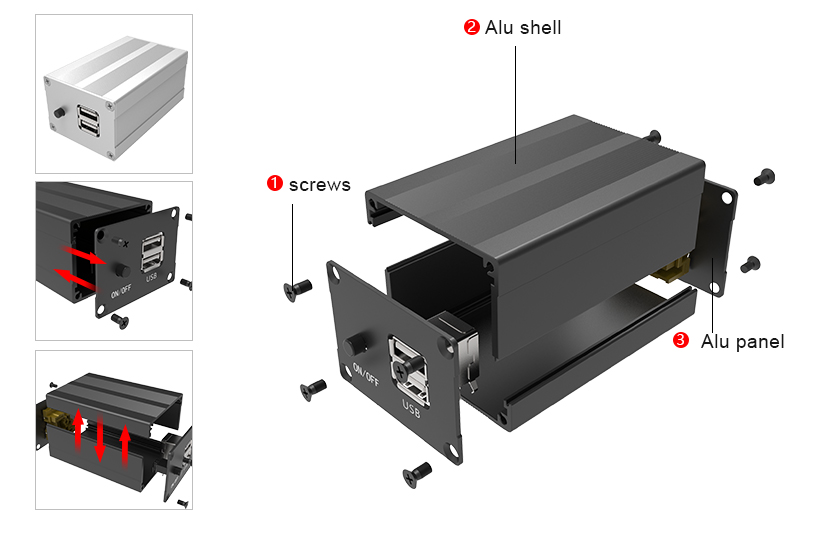

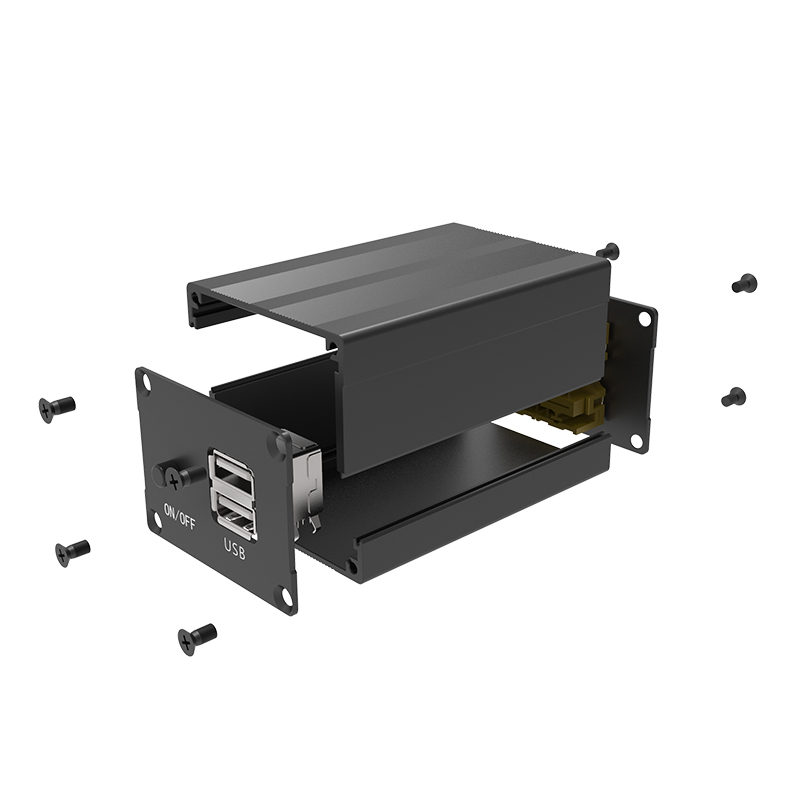

The enclosure is comosed of four parts: top shell+bottom shell+ front / rear panels + 8 screws. The internal card slot
design is easy for pcb assembly installation.
Superiority:
1.Two piece body-with easily removable
2.General purpose, good for heat dissipation
3.Anodizing, sandblasting or brushed can be chosen, custom colors
4.Cutout and bending panel can be customized
5.Custom panel thickness
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
YONGU Split Extruded aluminum Enclosurse H04 52*38mm
The enclosure is comosed of four parts: top shell+bottom shell+ front / rear panels + 8 screws. The internal card slot
design is easy for pcb assembly installation.
Superiority:
1.Two piece body-with easily removable
2.General purpose, good for heat dissipation
3.Anodizing, sandblasting or brushed can be chosen, custom colors
4.Cutout and bending panel can be customized
5.Custom panel thickness
extruded aluminium enclosure
| Product Name | Split Aluminum enclosure | |||
| Material | Aluminum | |||
| Color Customization | Gold, blue, black, silver, yellow, white, red, etc. | |||

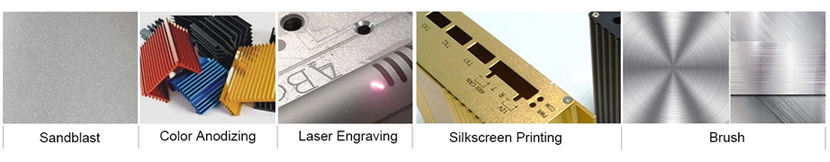

| Surface Treatment | Brush, sandblast, anodize, silk-screen print | |||
| Type | Drilling, Etching / Chemical Machining, Laser Machining, Milling | |||
| CNC Machining Or Not | CNC Machining | |||
| Micro Machining Or Not | Micro Machining | |||
| Optional Service | 3 4 5 6 Axis CNC Machining Service | |||
| OEM/ODM | Accept | |||
| Drawing Format | dwg,dxf,step,iges,pdf,jpg,ai,cdr | |||
| Surface finishing | Anodized | |||
| Stocking size | L:80 | |||
| Optional customized service | Length/holes milling/flange/silkscreen/engraving/colors | |||
| MOQ | 1 pcs | |||
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
