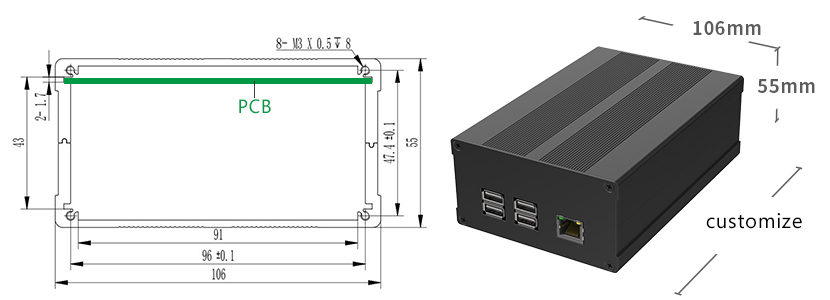

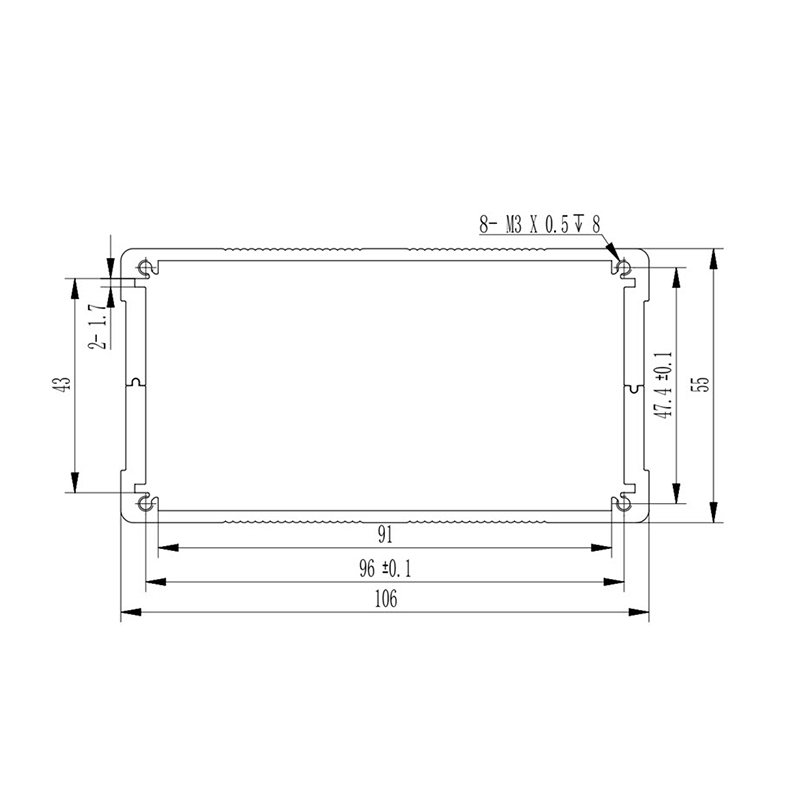

- YONGU Custom Split Aluminum Box H19 106*55mm
YONGU Custom Split Aluminum Box H19 106*55mm

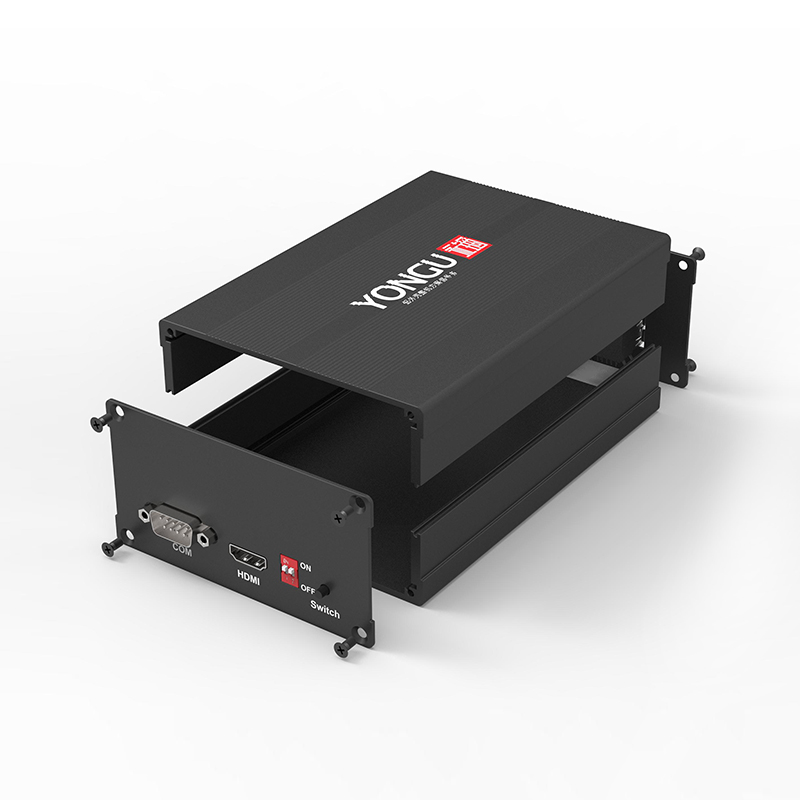

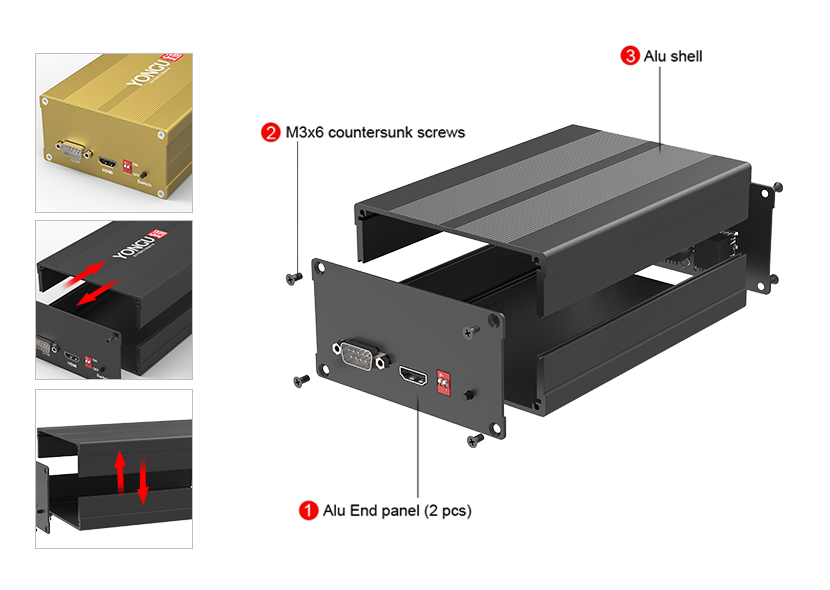

The enclosure is composed of three parts: shell+ front/rear panels+ 8 crews, adopted the AL6063S materials.
The internal card slot designis easy for pcb assembly installation. It is widely used in equipment for communication,
medical, teaching experiment, environmental monitoring and testing, industrial control, rail transit, vehicle terminal,
security and protection, electronics, instrument and meter industrial..
Superiority:
1.Two piece body-with easily removable belly plate for easy access to top interior of enclosure.
2.General Purpose, EMI Shielded or Heat Dissipation Options.

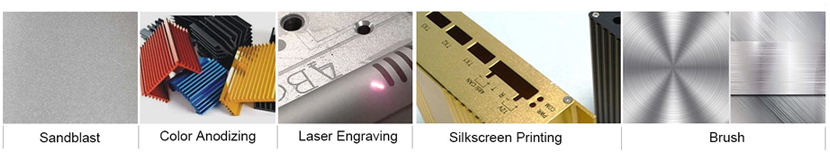

3.Sandblast and brushed surface finishing options, Anodized color
4.P.C boards mount horizontally by sliding into internal slots extruded into the enclosure body.
5.Acceptable for customization:length,customs,milling ,L shape end panel option,thickness end panel option,
silkscreen or engraving option
extruded aluminum enclosure profiles
| Product Name | Split Aluminum enclosure | |||
| Material | Aluminum | |||

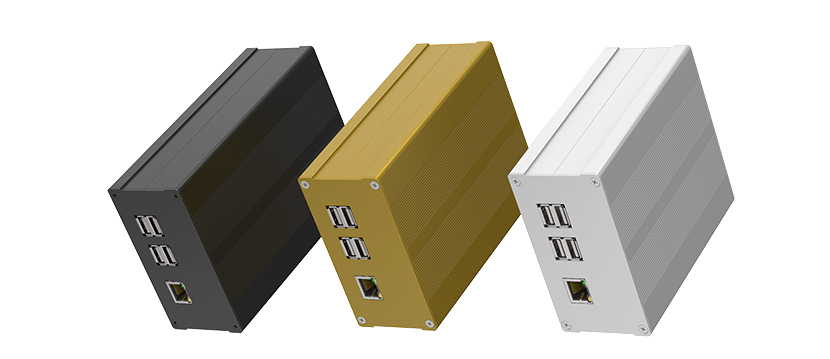

| Color Customization | Gold, blue, black, silver, yellow, white, red, etc. | |||
| Surface Treatment | Brush, sandblast, anodize, silk-screen print | |||
| Type | Drilling, Etching / Chemical Machining, Laser Machining, Milling | |||
| CNC Machining Or Not | CNC Machining | |||
| Micro Machining Or Not | Micro Machining | |||
| Optional Service | 3 4 5 6 Axis CNC Machining Service | |||
| OEM/ODM | Accept | |||
| Drawing Format | dwg,dxf,step,iges,pdf,jpg,ai,cdr | |||
| Surface finishing | Anodized | |||
| Stocking size | L:130mm | |||
| Optional customized service | Length/holes milling/flange/silkscreen/engraving/colors | |||
| MOQ | 1 pcs | |||
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
