- YONGU Waterproof Aluminum Box M04 150*75mm
WATERPROOF IP68 Aluminum Enclosure
YONGU Waterproof Aluminum Box M04 60*60mm

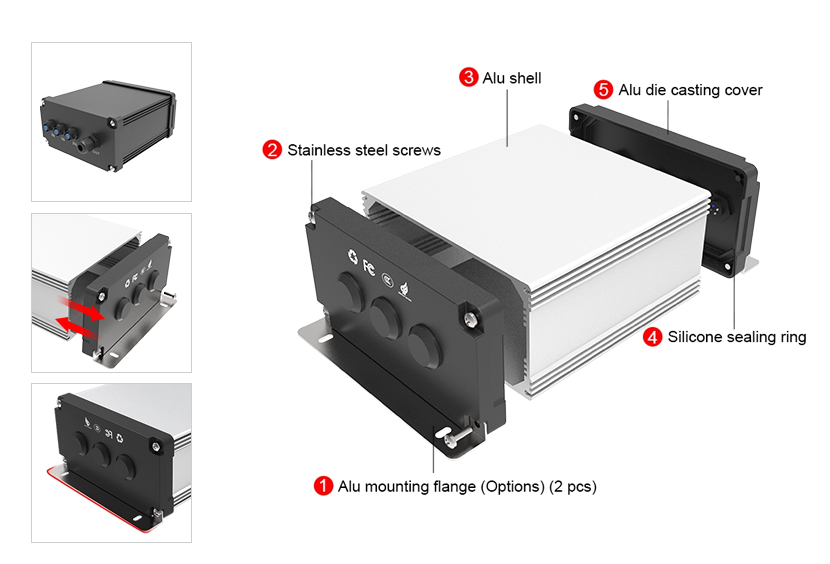

It has better characteristics for waterproof and sealing with one-piece silicangel seal ring. Aluminum extruded shell with
Die-casting end panels. Stainless steel screw; Good seal screws design, waterproof rate up to IP68. Suitable for
underwater detection and outdoor monitoring equipment. Optional stocking specifications, length can be customized.
Superiority:
1.Aluminum extruded enclosure ,Length can customization.
2.Die-casting end panels.
3.Integrated silicone sealing ring.
4.Holes cutting and milling customized.
5.Apply to rail transit,underwater detection,outdoor monitoring equipment.
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
YONGU Waterproof Aluminum Box M04 60*60mm
It has better characteristics for waterproof and sealing with one-piece silicangel seal ring. Aluminum extruded shell with
Die-casting end panels. Stainless steel screw; Good seal screws design, waterproof rate up to IP68. Suitable for
underwater detection and outdoor monitoring equipment. Optional stocking specifications, length can be customized.
Superiority:
1.Aluminum extruded enclosure ,Length can customization.
2.Die-casting end panels.
3.Integrated silicone sealing ring.
4.Holes cutting and milling customized.
5.Apply to rail transit,underwater detection,outdoor monitoring equipment.
custom waterproof enclosure design
| Product Name | Waterproof Aluminum Enclosure | |||
| Material | Aluminum | |||
| Color Customization | Gold, blue, black, silver, yellow, white, red, etc. | |||
| Surface Treatment | Brush, sandblast, anodize, silk-screen print | |||
| Type | Drilling, Etching / Chemical Machining, Laser Machining, Milling | |||
| CNC Machining Or Not | CNC Machining | |||
| Micro Machining Or Not | Micro Machining | |||
| Optional Service | 3 4 5 6 Axis CNC Machining Service | |||
| OEM/ODM | Accept | |||
| Drawing Format | dwg,dxf,step,iges,pdf,jpg,ai,cdr | |||
| Surface finishing | Anodized | |||

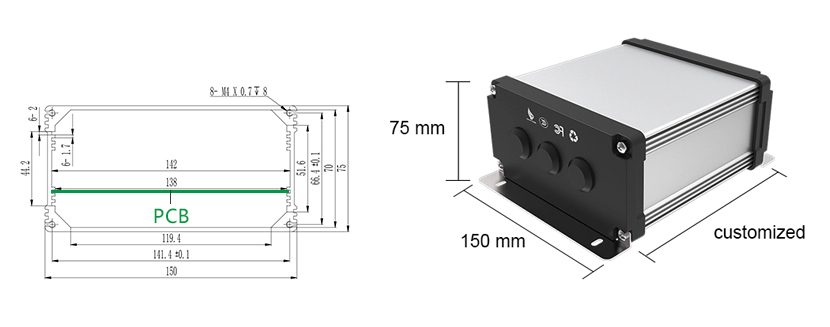

| Stocking size | L:70/80/100/120/150 | |||
| Optional customized service | Length/holes milling/flange/silkscreen/engraving/colors | |||
| MOQ | 1 pcs | |||
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
