- YONGU Custom Aluminum Case Electronic Extruded Enclosure G05 256*75mm
Integrated Instrument Chassis

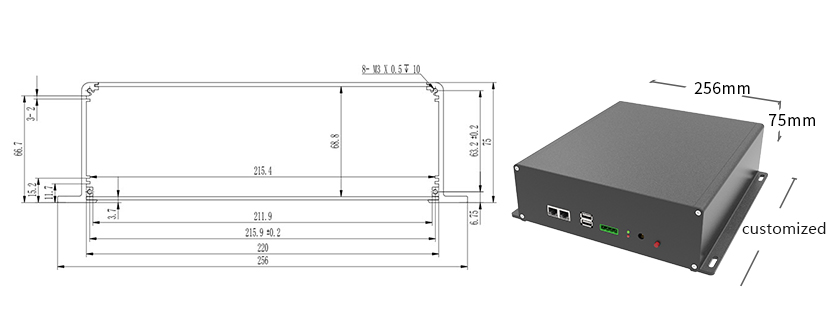

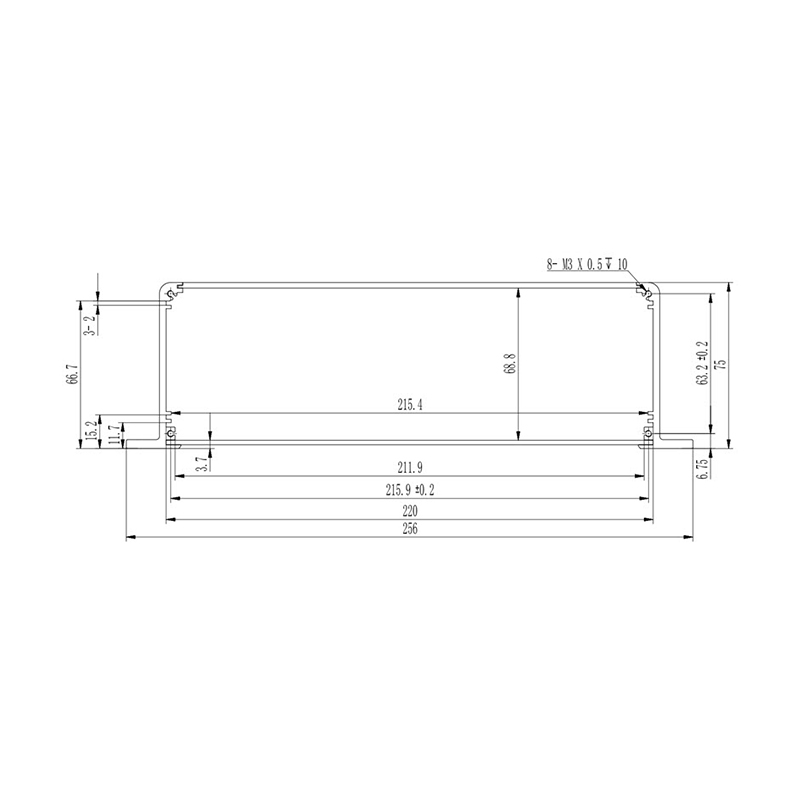

YONGU Custom Aluminum Case Electronic Extruded Enclosure G05 256*75mm
Adopt high quality aluminum profile, extruded side panels, available length and width customized size, CNC machinery
face plate, widely suitable for various fields of enclosures.
Superiority:
1.Slot panels.
2.Full size Customization
3.More color options for anodized
4.Cutouts customization
5.Thickness of face plate customization
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
YONGU Custom Aluminum Case Electronic Extruded Enclosure G05 256*75mm
Adopt high quality aluminum profile, extruded side panels, available length and width customized size, CNC machinery
face plate, widely suitable for various fields of enclosures.
Superiority:
1.Slot panels.
2.Full size Customization
3.More color options for anodized
4.Cutouts customization
5.Thickness of face plate customization
| Product Name | Waterproof Aluminum Enclosure | |||
| Material | Aluminum | |||
| Color Customization | Gold, blue, black, silver, yellow, white, red, etc. | |||
| Surface Treatment | Brush, sandblast, anodize, silk-screen print | |||
| Type | Drilling, Etching / Chemical Machining, Laser Machining, Milling | |||
| CNC Machining Or Not | CNC Machining | |||
| Micro Machining Or Not | Micro Machining | |||
| Optional Service | 3 4 5 6 Axis CNC Machining Service | |||
| OEM/ODM | Accept | |||
| Drawing Format | dwg,dxf,step,iges,pdf,jpg,ai,cdr | |||
| Surface finishing | Anodized | |||
| Stocking size | L:235mm | |||
| Optional customized service | Length/holes milling/flange/silkscreen/engraving/colors | |||
| MOQ | 1 pcs | |||
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
